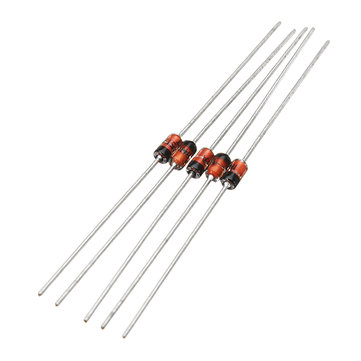

The 5.6V 1/2W Zener Diode is a semiconductor component engineered to provide a dependable 5.6 volt reference voltage while safeguarding sensitive electronic circuits against overvoltage conditions. When operating in its reverse breakdown region, it maintains a stable voltage, making it ideal for voltage regulation, voltage clamping, and reference generation in low power applications.
This diode is commonly used in low power power supply stages, microcontroller protection circuits, measurement instruments, and signal conditioning systems where precise and consistent voltage control is essential. Its predictable reverse breakdown characteristics ensure repeatable and reliable performance under a variety of electrical conditions.
The axial lead through hole package allows straightforward installation on printed circuit boards while providing strong mechanical stability and reliable electrical connection. With a power dissipation rating of 0.5 watt, the 5.6V 1/2W Zener Diode is suitable for low to medium power regulation and protection applications in compact electronic designs.
Key Technical Specifications (Datasheet Snapshot):
-
Nominal Zener voltage of 5.6 volts
-
Maximum power dissipation of 0.5 watt
-
Designed for voltage regulation and reference voltage applications
-
Stable reverse breakdown characteristics for consistent operation
-
Axial lead through hole package for secure and durable mounting
The 5.6V 1/2W Zener Diode is a reliable and essential component for precise voltage control and overvoltage protection in a wide range of electronic circuits.
