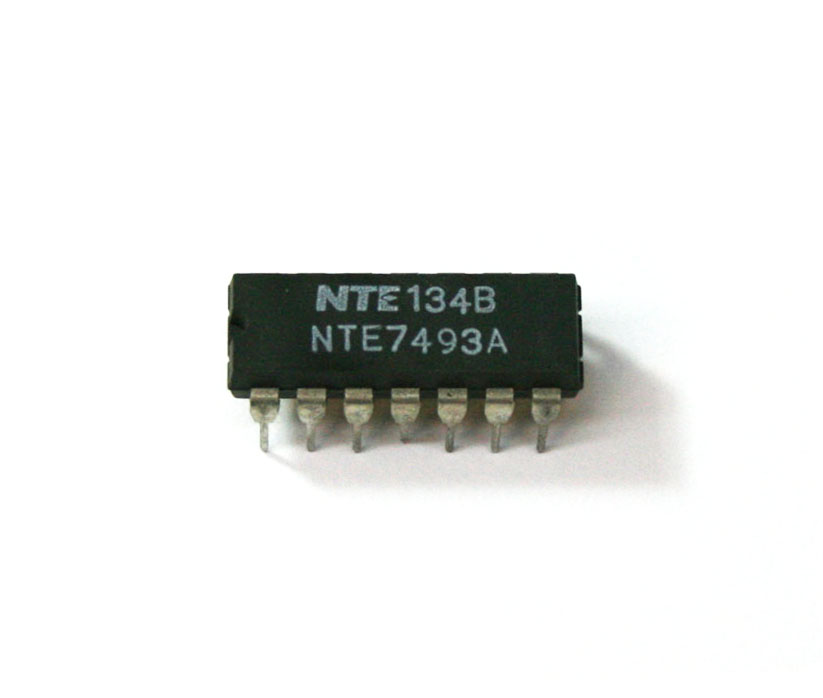

The 7493 4-Bit Binary Counter is a member of the 74xx TTL logic family designed to perform simple binary counting operations in digital circuits. It includes four flip-flops internally configured as a chain to represent a 4-bit binary number, allowing counting from 0000 through 1111 (0 to 15 decimal). Each output pin corresponds to a binary bit, with Q0 being the least significant bit (LSB) and Q3 the most significant bit (MSB).
This counter is typically driven by a clock signal applied to the clock input pin. With each incoming pulse, the counter increments its binary value by one. This makes it useful for frequency division, sequential logic, timing circuits, and simple on-chip counters in embedded logic designs.
The 7493 can operate in several counting modes, including modulo-16 straight counting or combinations with reset inputs to implement other mod counts. It may also be incorporated into larger counting systems or cascaded with other counters for extended bit widths.
Being part of the TTL (Transistor-Transistor Logic) 74xx series, the 7493 interfaces easily with other logic ICs in digital systems, providing reliable performance with typical 5 V logic levels.
Key Technical Specifications Datasheet Snapshot
-
4-bit binary asynchronous counting
-
Counts from 0 up to 15 (modulo-16)
-
Four parallel outputs (Q0-Q3)
-
Clock input for incrementing count
-
-
Reset/clear pins for count control
-
Standard 14-pin DIP package
Typical Use Cases
-
Frequency division and clock division circuits
-
Simple digital timers and counters
-
Binary sequence generation
-
Educational logic and digital design learning
-
Pulse counting applications
The 7493 4-Bit Binary Counter provides a foundational digital counting element in logic design, making it a staple component for digital electronics projects and educational circuitry.
