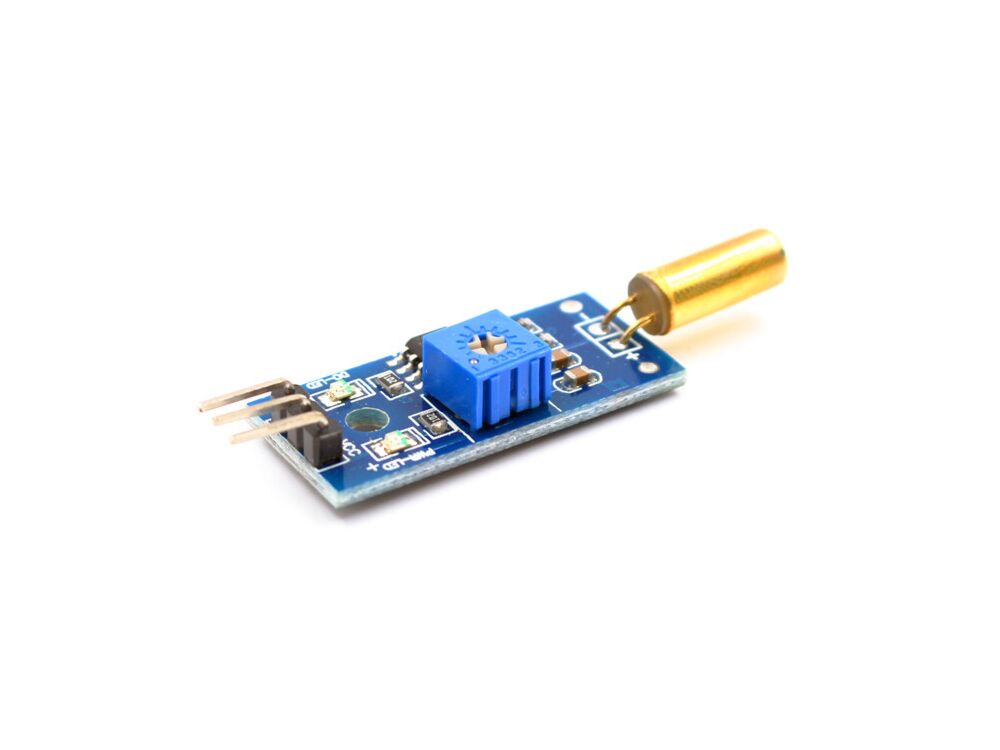

Tilt Sensor SW-520D Module for Arduino

The Tilt Sensor SW-520D Module is a reliable and affordable motion detection device designed for detecting vibration, tilt, or orientation changes. Based on the SW-520D ball switch, it works by closing or opening the circuit when tilted, providing a clean digital output signal (HIGH/LOW) that can be easily read by Arduino, ESP32, STM32, and Raspberry Pi.

This module is widely used in anti-theft alarms, motion-activated systems, robot balance control, and DIY electronic projects. The built-in comparator circuit ensures a stable output even in noisy environments, and the onboard LED indicator allows you to easily visualize sensor activity.

Compact, durable, and simple to use — the SW-520D tilt sensor module is perfect for beginners and professionals looking for an efficient way to detect motion or orientation changes in their projects.

⚙️ Features:

• Uses SW-520D ball tilt switch for accurate motion detection

• Outputs digital HIGH/LOW signal

• Built-in comparator and LED status indicator

• Compatible with Arduino, ESP32, and Raspberry Pi

• Simple plug-and-play operation

• Low power consumption and compact design

🧩 Applications:

• Motion and vibration detection systems

• Anti-theft and alarm devices

• Robotics and orientation sensing

• Smart home automation

• DIY Arduino and IoT projects

🔧 Specifications:

• Sensor Type: SW-520D Tilt Sensor

• Operating Voltage: 3.3V – 5V DC

• Output Type: Digital (HIGH/LOW)

• Interface Pins: VCC, GND, DO

• Dimensions: Approx. 32mm × 14mm

• Indicator LED: Active when motion detected

• Response Time: < 10ms
