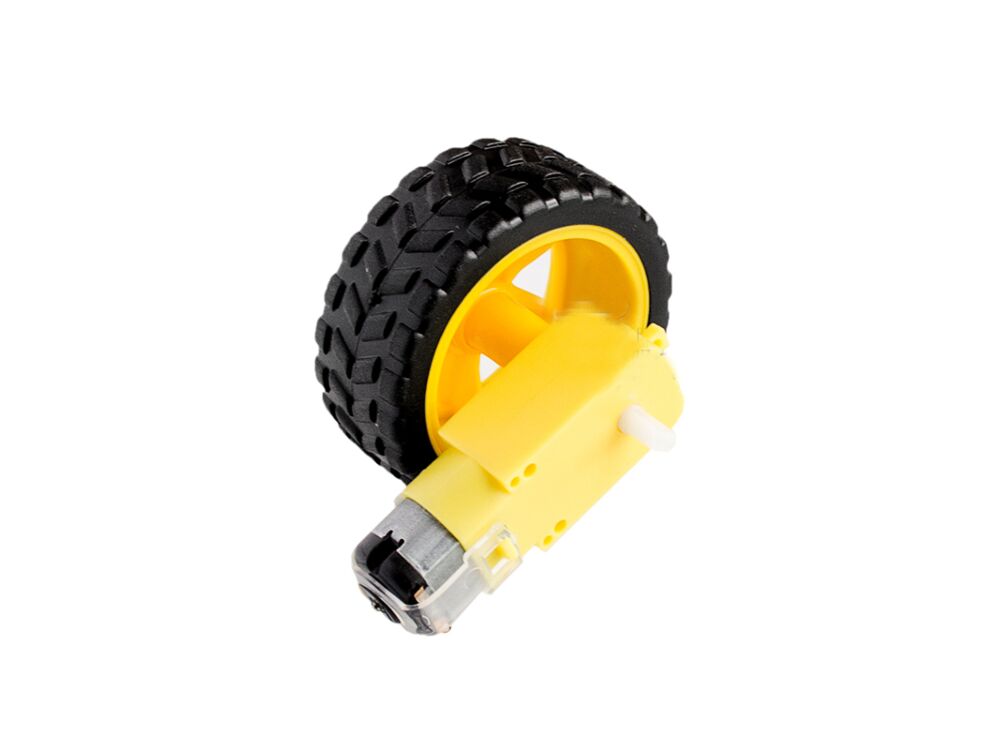

Yellow Gear Motor with 65mm Wheel Set (1:48 Torque Ratio)

Overview: The Core Drive System for Robotics

The Yellow Gear Motor with Wheel Set is the standard, reliable, and cost-effective drive solution for all entry-level robotics and automation projects. This complete set includes the popular TT Gear Motor, often referred to as a BO Motor, and a matching 65mm diameter wheel.

The motor features an integrated 1:48 gear reduction box, which significantly slows the speed down to a usable RPM while dramatically increasing the torque around 800g.cm. This high torque is crucial for ensuring your robotic car has the power needed to climb small slopes and overcome obstacles.

This set is the trusted foundation for every student, hobbyist, and engineer building mobile robots in Bangladesh, offering both simplicity and the necessary mechanical power.

Key Technical Features: Torque and Versatility

• Motor Type: DC TT Gear Motor in Yellow color.

• Gear Ratio: High torque 1:48 Reduction Ratio, standard for small mobile robots.

• Operating Voltage: Wide range of 3V to 6V DC (5V is the recommended voltage).

• Maximum Torque: Approximately 800g.cm at 3V.

• No-Load Speed: Typically around 90 RPM at 3V and 200 RPM at 6V.

• Wheel Size: Durable plastic wheel with rubber tread, typically 65mm Diameter.

• Shaft: Features a dual shaft design, allowing the wheel to be mounted on one side and an encoder disk on the other.

• Low Current Draw: No-load current is low, typically under 250mA, suitable for common motor drivers.

Applications: Dependable Results for Automation

• Line Follower Robots: Providing the necessary traction and torque for stable movement.

• Obstacle Avoidance Robots: The standard drive system for Arduino-based smart cars.

• Educational Robotics Kits: Used in schools and universities to teach motor control and chassis design.

• Remote Controlled Cars: Powering simple DIY remote-controlled vehicles.

Projectile Electronics Quality and Trust:

We provide the quality TT Gear Motor known for its durable plastic gear construction and reliable performance under load. We ensure our local customers receive a consistent, matched set of motor and wheel, which is fundamental to the stability and success of their robotics projects.

Package Includes:

1 x Yellow Gear Motor TT Motor 1 x 65mm Diameter Wheel
